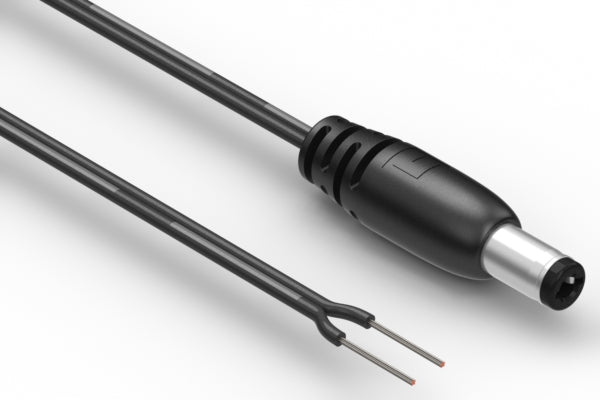

Cable, 1830 mm, 5.5x2.5x9.5 mm 50-00026 dc plug to 10 mm tinned, 24 AWG, UL2468, 30-00404 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | plug → s + t |
| connector orientation | 180° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.5 mm |
| connector plating | nickel |
| wire outer Ø | 3.0 mm |
| AWG | 24 |
| cable style | flat |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 9 mm |
| color | black |
| cable length | 1830 mm |
| voltage rating | 48 V |
| current rating | 4.5 A |
| UL style | 2468 |
| connector 1 | 50-00026 |
| wire part # | 30-00404 |
| HTS code | 8544.42.9090 |
| Prop65 | Vinyl Chloride |
