Description
Description

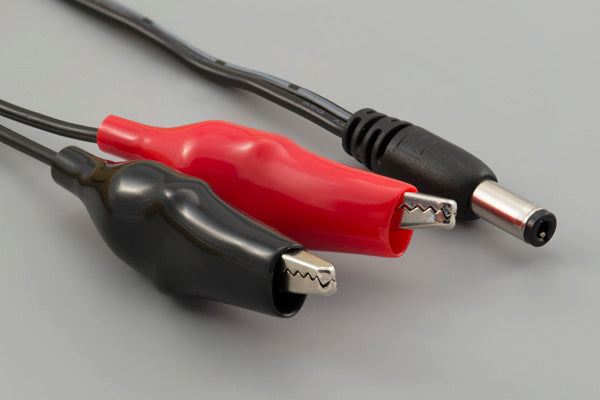

Cable, 915 mm, 5.5x2.5 mm 50-00026 dc plug to alligator clips, 18 AWG, 30-00395 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc → alligator clips |
| connector style | plug → plug |
| connector orientation | 180° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector outer Ø | 5.5 mm |
| wire outer Ø | 4.4 mm |
| AWG | 18 |
| cable style | flat |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 13.2 mm |
| color | black |
| cable length | 915 mm |
| operating temperature | 80 °C |
| voltage rating | 48 V |
| current rating | 8 A |
| UL style | 2468 |
| connector 1 | 50-00026 |
| connector 2 | 50-00555, 50-00556 |
| wire part # | 30-00395 |
| HTS code | 8544.42.9090 |
| unit weight | 38.33g |
| Prop65 | Nickel |
