Price:
Sale price$0.00

Description

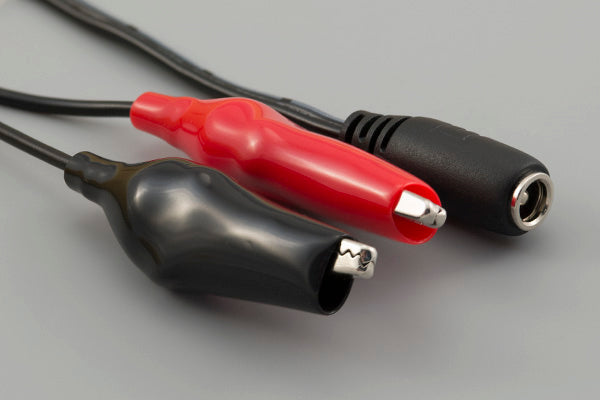

Cable, 305 mm, 5.5x2.5 mm 50-00027 dc jack to alligator clips, 18 AWG, 30-00395 wire

connector type dc → alligator clips
connector style plug → jack
connector orientation 180°
# of conductors 2
# of connector contacts 2
connector center pin Ø 2.5 mm
connector outer Ø 5.5 mm
wire outer Ø 4.4
AWG 18
cable style flat
shield unshielded
jacket material PVC
bend radius 13.2 mm
color black
cable length 305 mm
operating temperature 80 °C
voltage rating 48 V
current rating 11.0 A
UL style 2468
connector 1 50-00027
connector 2 50-00555, 50-00556
wire part # 30-00395
HTS code 8544.42.9090
unit weight 26.67g
Prop65 Nickel
