Description
Description

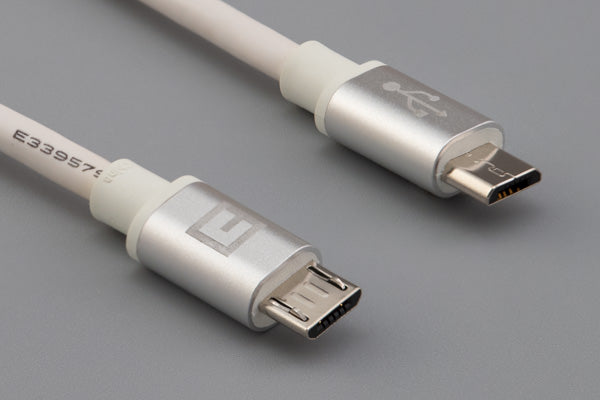

Cable, 1000 mm, 50-00584 USB B micro plug to same, 28 AWG, 30-00099 wire, white
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | usb |
| connector style | plug → plug |
| connector orientation | 180° |
| # of conductors | 4 |
| wire outer Ø | 3.6 mm |
| AWG | 28 |
| cable style | round |
| shield | braid + foil |
| jacket material | PVC |
| bend radius | 21.6 mm |
| color | white |
| insulator color | white + black + red + green |
| cable length | 1000 mm |
| UL style | 2725 |
| connector 1 | 50-00584 |
| connector 2 | 50-00584 |
| wire part # | 30-00099 |
| HTS code | 8544.42.9090 |
| unit weight | 29.00g |
| Prop65 | Vinyl Chloride |
