Price:
Sale price$0.00

Description

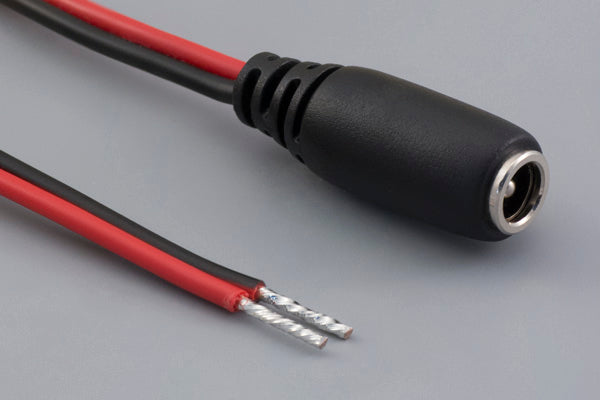

Cable, 1830 mm, 5.5x2.1 mm 50-00541 dc jack to 10 mm tinned, 18 AWG, 30-00795 R-B wire, 105° C

connector type dc
connector style jack → tinned
connector orientation 180°
# of conductors 2
# of connector contacts 2
connector center pin Ø 2.1 mm
connector outer Ø 5.5 mm
wire outer Ø 4.4
AWG 18
cable style flat
shield unshielded
jacket material PVC
bend radius 13.2 mm
color red + black
cable length 1830 mm
operating temperature 105 °C
voltage rating 48 V
current rating 7.5 A
UL style 2651
connector 1 50-00541
connector 2 stripped and tinned
wire part # 30-00795
HTS code 8544.42.9090
unit weight 48.45g
Prop65 Vinyl Chloride
