Price:
Sale price$0.00

Description

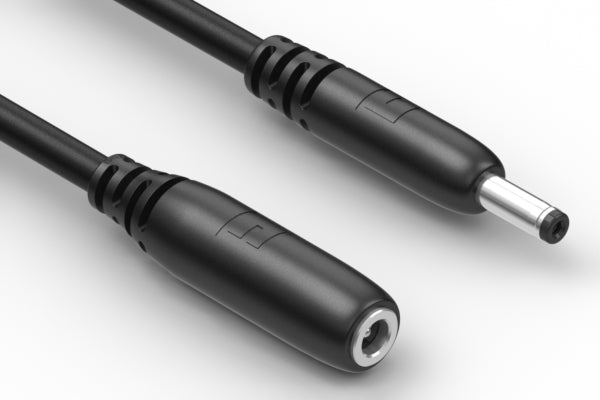

Cable, 1830 mm, 3.5x1.35x9.5mm 50-00056 plug to 3.5x1.35mm 50-00057 jack, 24 AWG, 30-00692 wire

connector type dc
connector style plug → jack
connector orientation 180°
# of conductors 2
# of connector contacts 2
connector center pin Ø 1.35 mm
connector outer Ø 3.5 mm
wire outer Ø 4
AWG 24
cable style round
shield unshielded
jacket material PVC
bend radius 24 mm
color black
insulator color black + red
cable length 1830 mm
voltage rating 48 V
current rating 4.5 A
UL style 2464
connector 1 50-00056
connector 2 50-00057
wire part # 30-00692
HTS code 8544.42.9090
unit weight 52.50g
Prop65 Vinyl Chloride
