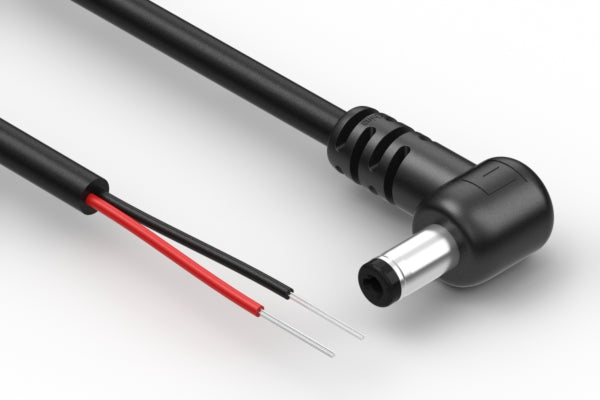

Cable, 1830 mm, 4.75x1.7x9.5 mm 90° 50-00135 plug to stripped tinned, 24 AWG, 30-00692 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | plug → tinned |
| connector orientation | 90° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 1.7 mm |
| connector outer Ø | 4.75 mm |
| wire outer Ø | 4.0 mm |
| AWG | 24 |
| cable style | round |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 24 mm |
| color | black |
| insulator color | black + red |
| cable length | 1830 mm |
| voltage rating | 48 V |
| current rating | 4.5 A |
| UL style | 2464 |
| connector 1 | 50-00135 |
| connector 2 | stripped and tinned |
| wire part # | 30-00692 |
| HTS code | 8544.42.9090 |
| unit weight | 0.00g |
| Prop65 | Vinyl Chloride |
