Description

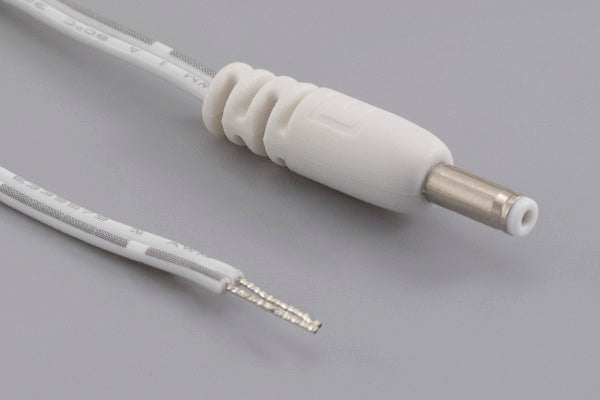

Cable, 1830 mm, 3.5x1.35x9.5 mm 50-00315 dc plug to stripped tinned, 24 AWG, 30-00405 wire, white
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | plug → tinned |
| connector orientation | 180° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 1.35 mm |
| connector outer Ø | 3.5 mm |
| wire outer Ø | 3.0 mm |
| AWG | 24 |
| cable style | flat |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 9 mm |
| color | white |
| cable length | 1830 mm |
| operating temperature | 80 °C |
| voltage rating | 48 V |
| current rating | 4 A |
| UL style | 2468 |
| connector 1 | 50-00315 |
| connector 2 | stripped and tinned |
| wire part # | 30-00405 |
| HTS code | 8544.42.9090 |
| Prop65 | Vinyl Chloride |
