Description

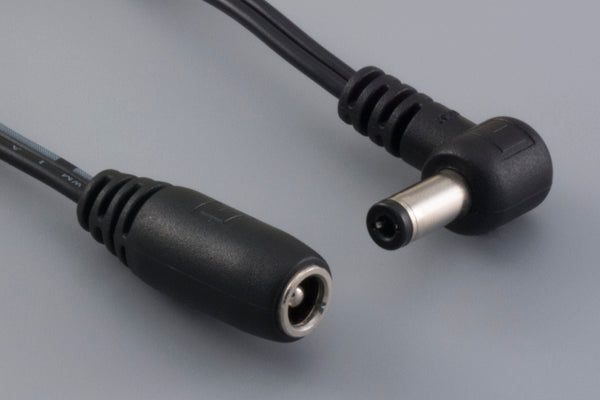

Cable, 915 mm, 5.5x2.5x12 mm 90° 50-00187 dc plug to 5.5x2.5 mm 50-00027 jack, 18 AWG, 30-00007 wire

connector type dc
connector style plug → jack
connector orientation 90°
# of conductors 2
# of connector contacts 2
connector center pin Ø 2.5 mm
connector outer Ø 5.5 mm
wire outer Ø 4.4
AWG 18
cable style flat
shield unshielded
jacket material PVC
bend radius 13.2 mm
color black
cable length 915 mm
operating temperature 80 °C
voltage rating 48 V
current rating 6.5 A
UL style 2468
connector 1 50-00187
connector 2 50-00027
wire part # 30-00007
HTS code 8544.42.9090
unit weight 31.87g
Prop65 Vinyl Chloride
