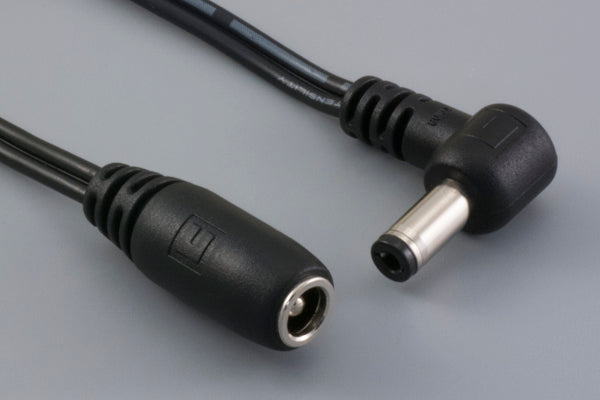

Cable, 1830 mm, 5.5x2.5x12 mm 90° 50-00187 dc plug to 5.5x2.5 mm 50-00027 jack, 18 AWG 30-00007 wire
| connector type | dc |
| connector style | plug → jack |
| connector orientation | 90° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.5 mm |
| connector outer Ø | 5.5 mm |
| wire outer Ø | 4.4 mm |
| AWG | 18 |
| cable style | flat |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 13.2 mm |
| color | black |
| cable length | 1830 mm |
| operating temperature | 80 °C |
| voltage rating | 48 V |
| current rating | 6.5 A |
| UL style | 2468 |
| connector 1 | 50-00187 |
| connector 2 | 50-00027 |
| wire part # | 30-00007 |
| HTS code | 8544.42.9090 |
| unit weight | 54.25g |
| Prop65 | Vinyl Chloride |
