Description
Description

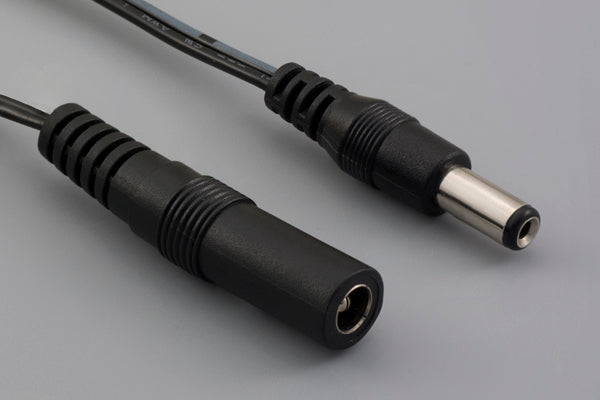

Cable, 4270 mm, 5.5x2.1x12 mm dc plug to 5.5x2.1 mm dc jack, 22 AWG, UL2468 30-00008
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | plug → jack |
| connector orientation | 180° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.1 mm |
| connector outer Ø | 5.5 mm |
| wire outer Ø | 3.6 mm |
| AWG | 22 |
| cable style | flat |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 10.8 mm |
| color | black |
| cable length | 4270 mm |
| operating temperature | 80 °C |
| voltage rating | 48 V |
| current rating | 6 A |
| UL style | 2468 |
| connector 1 | 50-00126 |
| connector 2 | 50-00362 |
| wire part # | 30-00008 |
| HTS code | 8544.42.9090 |
| unit weight | 63.28g |
| Prop65 | Vinyl Chloride |
