Description

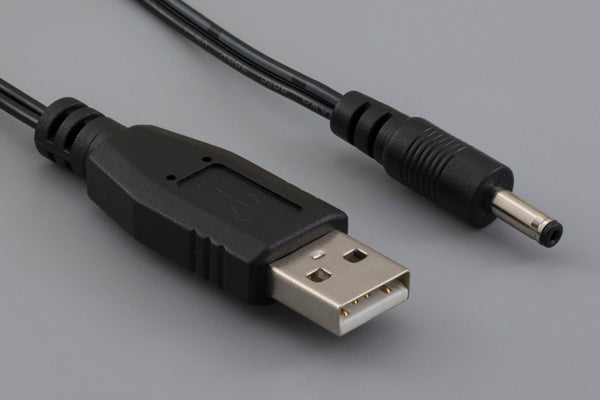

Cable, 1830 mm, USB A plug to 3.5x1.35x9.5 mm 50-00056 plug, center neg, 22 AWG, UL2468, 30-00008

connector type dc → usb
connector style plug → plug
connector orientation 180°
# of conductors 2
# of connector contacts 2
connector center pin Ø 1.35 mm
connector outer Ø 3.5 mm
wire outer Ø 3.6 mm
AWG 22
cable style flat
shield unshielded
jacket material PVC
bend radius 10.8 mm
color black
cable length 1830 mm
voltage rating 5 V
current rating 1.0 A
UL style 2468
connector 1 50-00425
connector 2 50-00056
wire part # 30-00008
HTS code 8544.42.9090
unit weight 38.87g
Prop65 Vinyl Chloride
