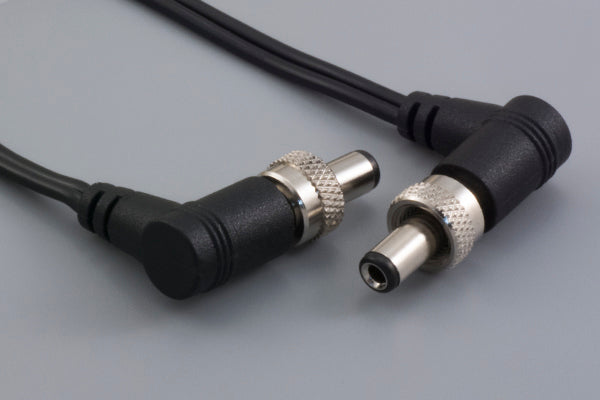

Cable, 2000 mm, 5.5x2.5x7.5mm 90° 50-00011 locking dc plug to same, 18 AWG, UL2468, 30-00007 wire
| connector type | dc |
| connector style | plug → plug |
| connector orientation | 90° |
| # of conductors | 1 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.5 mm |
| connector outer Ø | 5.5 mm |
| locking style | Y |
| wire outer Ø | 4.4 mm |
| AWG | 18 |
| cable style | flat |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 13.2 mm |
| color | black |
| cable length | 2000 mm |
| operating temperature | 80 °C |
| voltage rating | 48 V |
| current rating | 6.5 A |
| UL style | 2468 |
| features | thread lock |
| connector 1 | 50-00011 |
| connector 2 | 50-00011 |
| wire part # | 30-00007 |
| HTS code | 8544.42.9090 |
| unit weight | 62.70g |
| Prop65 | Vinyl Chloride |
