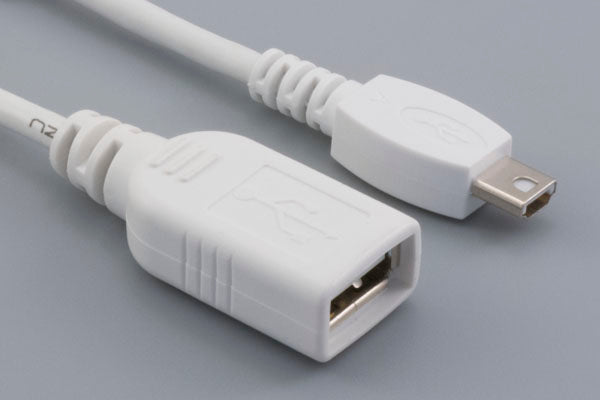

Cable, 102 mm, USB A receptacle to mini USB A plug, 28 AWG 30-00099 wire, white
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc → usb |
| connector style | plug → jack |
| connector orientation | 180° |
| # of conductors | 4 |
| # of connector contacts | 5 |
| wire outer Ø | 3.6 mm |
| AWG | 28 |
| cable style | round |
| shield | foil |
| jacket material | PVC |
| bend radius | 21.6 mm |
| color | white |
| cable length | 102 mm |
| operating temperature | 80 °C |
| UL style | 2725 |
| connector 1 | 50-00424 |
| connector 2 | 50-00432 |
| wire part # | 30-00145 |
| HTS code | 8544.42.9090 |
| unit weight | 14.12g |
| Prop65 | Vinyl Chloride |
