Description
Description

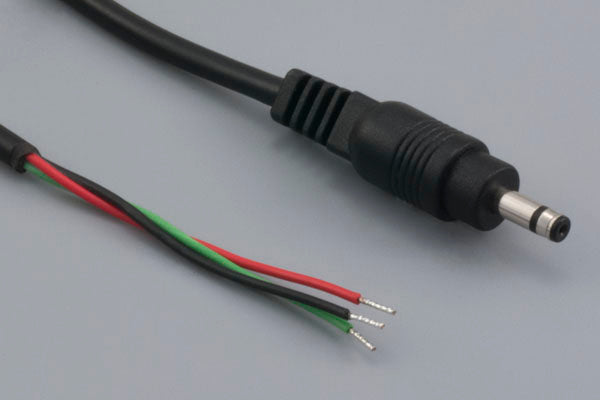

Cable, 1830 mm, 3.2x0.9x9.0 mm, 3 conductor 50-00074 plug to stripped tinned, 24 AWG, 30-00006 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | plug → tinned |
| connector orientation | 180° |
| # of conductors | 3 |
| # of connector contacts | 3 |
| connector center pin Ø | 0.9 mm |
| connector outer Ø | 3.2 mm |
| wire outer Ø | 3.4 mm |
| AWG | 24 |
| cable style | round |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 20.4 mm |
| color | black |
| cable length | 1830 mm |
| connector 1 | 50-00074 |
| connector 2 | stripped and tinned |
| wire part # | 30-00006 |
| HTS code | 8544.42.9090 |
| unit weight | 39.92g |
| Prop65 | Vinyl Chloride |
