Price:
Sale price$0.00

Description

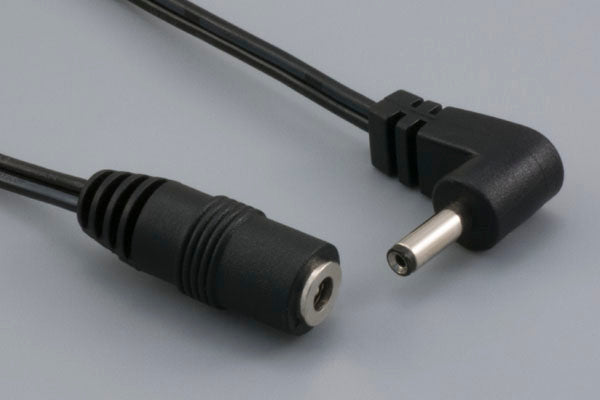

Cable, 1830 mm, 3.5x1.35x9.5 mm, 90° 50-00112 dc plug to 3.5x1.35 mm, dc jack, 24 AWG, 30-00003 wire

connector type dc
connector style plug → jack
connector orientation 90°
# of conductors 2
# of connector contacts 2
connector center pin Ø 1.35 mm
connector outer Ø 3.5 mm
wire outer Ø 3.6 mm
AWG 24
cable style flat
shield unshielded
jacket material PVC
bend radius 10.8 mm
color black
cable length 1830 mm
operating temperature 80 °C
UL style 2468
connector 1 50-00112
connector 2 50-00117
wire part # 30-00003
HTS code 8544.42.9090
unit weight 27.85g
Prop65 Vinyl Chloride
