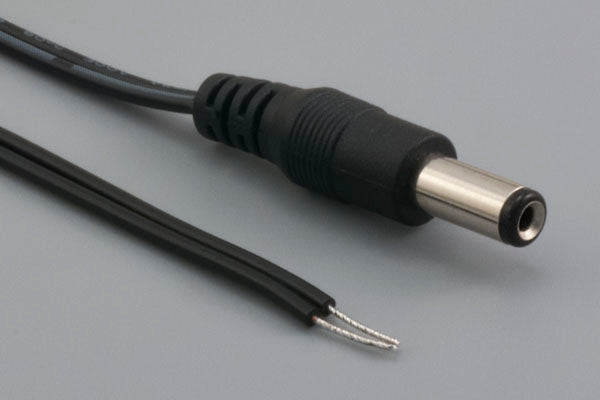

Cable, 1830 mm, 5.5x2.1x12 mm, 50-00126 dc plug to stripped tinned leads, 24 AWG, 30-00003 wire
| connector type | dc |
| connector style | plug → tinned |
| connector orientation | 180° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.1 mm |
| connector outer Ø | 5.5 mm |
| wire outer Ø | 3.6 mm |
| AWG | 24 |
| cable style | flat |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 10.8 mm |
| color | black |
| cable length | 1830 mm |
| operating temperature | 80 °C |
| UL style | 2468 |
| connector 1 | 50-00126 |
| connector 2 | stripped and tinned |
| wire part # | 30-00003 |
| HTS code | 8544.42.9090 |
| unit weight | 24.12g |
| Prop65 | Vinyl Chloride |
