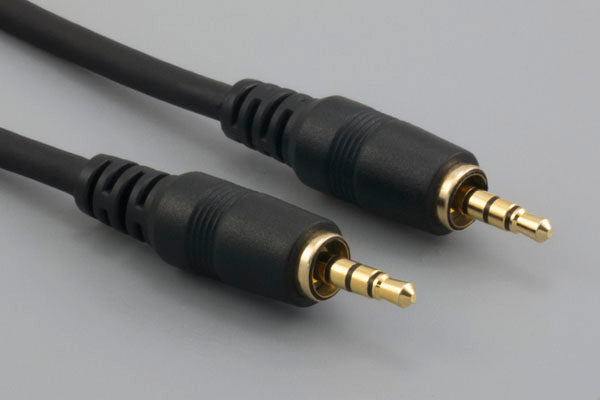

Cable, 1830 mm, 6C 3.5mm 50-00009 plug with ring to same, 26 AWG, shielded, TPE, 30-00461
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | audio-video |
| connector style | plug → plug |
| connector orientation | 180° |
| # of conductors | 6 |
| # of connector contacts | 6 |
| connector outer Ø | 3.5 mm |
| wire outer Ø | 4.5 mm |
| AWG | 26 |
| cable style | round |
| shield | spiral |
| jacket material | TPE |
| bend radius | 27 mm |
| color | black |
| cable length | 1830 mm |
| connector 1 | 50-00009 |
| connector 2 | 50-00009 |
| wire part # | 30-00461 |
| HTS code | 8544.42.9090 |
| unit weight | 66.00g |
| Prop65 | Vinyl Chloride |
