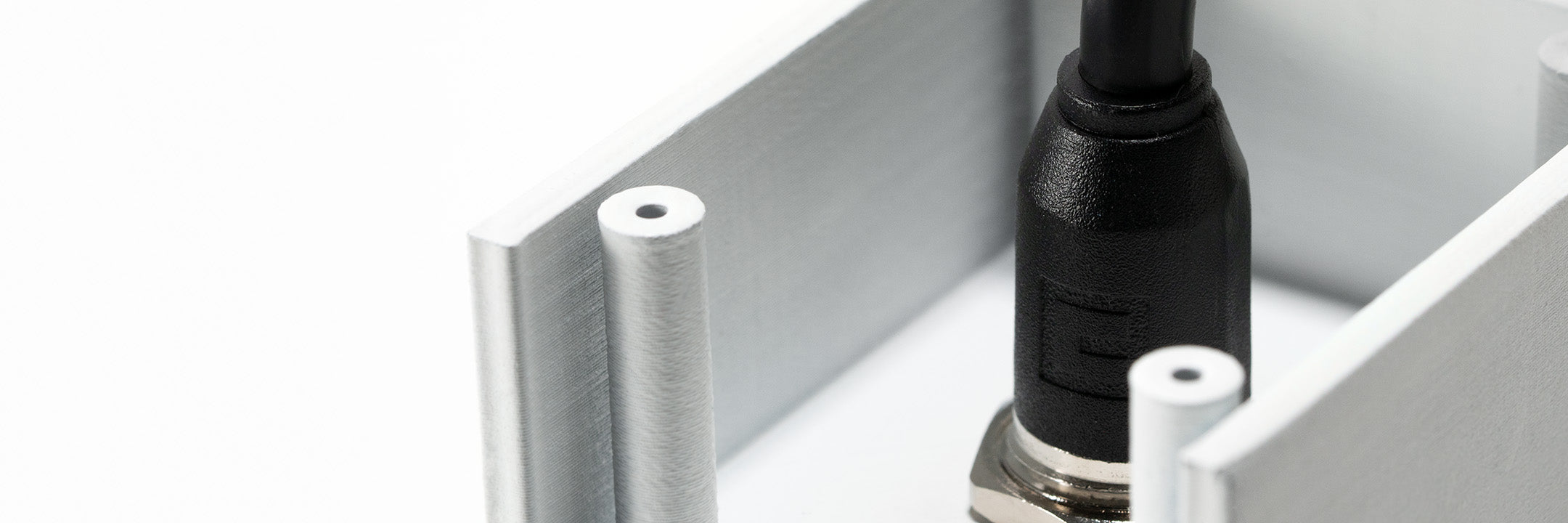

Jacketed M12 A-code panel mount cable assemblies provide a clean and organized solution for wiring inside control cabinets, panels, and enclosures. Designed with a 180° orientation and available in both plug and jack configurations, these assemblies support 4C and 8C conductor options to accommodate a range of signal and power connections.
Unlike traditional hookup wire installations, these assemblies use a PVC jacketed cable construction that keeps conductors bundled together while improving abrasion resistance and cable routing. The integrated jacket simplifies installation when multiple conductors are directed to the same pcb or terminal block, helping reduce wiring complexity while maintaining a professional panel layout.
Available in 500 mm, 1 m, and 2 m standard lengths, these cable assemblies support robotics, automation, communications, and industrial equipment. When fully mated, the connectors meet IP67 sealing standards, helping protect against dust and temporary water exposure in demanding environments.
SEE ALL PRODUCT
Key Features |
Applications |
|
|
FAQ
What are the advantages of a jacketed cable assembly vs hookup wire for internal panel wiring?
A jacketed assembly keeps multiple conductors bundled together, improving organization and reducing installation time inside panels or cabinets. It also adds abrasion resistance and strain protection compared to individual hookup wires.
Are M12 panel mount cable assemblies IP67 rated?
Yes. When fully mated, the M12 connectors are IP67 rated, providing protection against dust and temporary water immersion in industrial environments.
Why use M12 connectors for internal control panel and cabinet wiring?
M12 connectors provide secure threaded coupling, vibration resistance, and standardized pin configurations. Their compact circular design makes them ideal for organized panel layouts while maintaining reliable signal and power connections in automation and industrial systems.
